Fixed Speed 15 Hp Rotary Screw Air Compressor / Oil Lubricated Air Compressor

Product Categories
Wan Beardsley Compressor (Shanghai) Co., Ltd
Contact Now

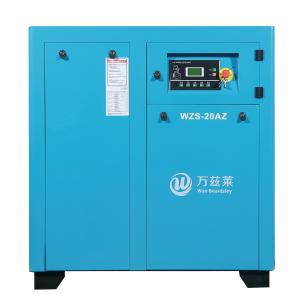

Fixed Speed 15 Hp Rotary Screw Air Compressor / Oil Lubricated Air Compressor

Brand Name : Wan Beardsley

Model Number : WZS-20AZ

Certification : ISO9001, CE

Place of Origin : Shanghai, China

MOQ : 1 set

Price : Negotiated

Payment Terms : T/T, L/C

Supply Ability : 500 sets per month

Delivery Time : 1-15 workdays after deposit.

Packaging Details : exporting wooden case / plywood case

Condition : 15 Hp Rotary Screw Air Compressor

Power : 15kW

Capacity : 2.4 m3/min @ 101psi/7bar

Capacity 2 : 2.2 m3/min @ 116psi/8bar

Capacity 3 : 2.0 m3/min @ 145psi/10bar

Capacity 4 : 1.7 m3/min @ 181psi/12.5bar

Air end : HANBELL (AB)

Motor grade : IP55/54

Power Supply : 220/380/440V 50/60Hz 3Ph

Transmission Mode : direct driven

Bearing : SKF (Sweden)

Color : Green /Blue /White or as your customized.

Warranty : 1 year Compressor unit, 2 yesrs AIR END

Lubrication Style : Wan Beardsley Brand Lubricated Oil

Contact Now

Fixed Speed 15 Hp Rotary Screw Air Compressor / Oil Lubricated Air Compressor

High efficient centrifugal fan-cooling control system of double frequency (optional package)

  • centrifugal fan-cooling permanent magnet motors adopt variable frequency control technology. They can save about 50% of the energy. Rotation speed of the cooling fan can be adjusted according to gas emission temperature, so as to reduce power consumption. Stable temperature of the overall system can improve durability of parts. In addition, variable frequency cooling fan can lower the noise.
  • Centrifugal cooling fans are characterized by high efficiency, low noise, balanced pressure curve and other outstanding performances.

Detailed Product Specifications:

Model WZS-20AZ
Air Flow/Working pressure 2.4m3/min @ 7bar
2.2m3/min @ 8bar
2.0m3/min @ 10bar
1.7m3/min @ 12.5bar
Compression stage Single
Type of Cooling Air Cooling
Exhaust Temperature < ambient temperature+8 degrees
Oil content of discharged air <2ppm
Noise 70±2 dB(A)
Power 380VAC/3phase/50Hz (Adjustable)
Starting way Soft VSD start
Driven method Direct-driven
Motor power 15kw/20hp
Dimension 1040*800*1180mm
Weight 410kg

WZS- 10AZ 15AZ 20AZ 25AZ 30AZ 50AZ 75AZ 100AZ 125AZ
Air flow/pressure (m³/min/MPa) 1.2/0.7 1.7/0.7 2.4/0.7 3.1/0.7 3.8/0.7 6.4/0.7 10.5/0.7 13.6/0.7 16.3/0.7
1.1/0.8 1.6/0.8 2.2/0.8 2.9/0.8 3.5/0.8 6.1/0.8 9.8/0.8 13.3/0.8 15.0/0.8
0.95/1.0 1.4/1.0 2.0/1.0 2.7/1.0 3.2/1.0 5.7/1.0 8.7/1.0 11.6/1.0 14.6/1.0
0.8/1.25 1.2/1.25 1.7/1.25 2.2/1.25 2.9/1.25 5.1/1.25 7.5/1.25 9.8/1.25 12.3/1.25
Motor Power (kw) 7.5 11 15 18.5 22 37 55 75 90
Horse power (HP) 10 15 20 25 30 50 75 100 125
Dimension Length(mm) 1000 1040 1040 1100 1400 1600 2050 2050 2150
Width (mm) 600 800 800 850 850 1000 1200 1200 1300
Height (mm) 1000 1180 1180 1300 1150 1370 1500 1500 1700
Noise dB(A) 66±2 70±2 70±2 70±2 71±2 74±2 74±2 75±2 75±2
Outlet diameter G3/4 G3/4 G3/4 G11/4 G11/4 G11/2 G2 G2 G2
Weight (kg) 240 400 410 590 620 840 1735 1850 1920
WZS- 150AZ/W 180AZ/W 220AZ/W 250AZ/W 300AZ/W 340AZ/W 400AZ/W 480AZ/W 540AZ/W
Air flow/pressure (m³/min/MPa) 20.3/0.7 24.0/0.7 27.0/0.7 32.5/0.7 40.0/0.7 43.5/0.7 50.8/0.7 60.0/0.7 72.0/0.7
19.0/0.8 23.0/0.8 26.5/0.8 31.0/0.8 36.8/0.8 42.0/0.8 48.2/0.8 57.0/0.8 68.0/0.8
17.0/1.0 20.0/1.0 22.5/1.0 28.0/1.0 32.2/1.0 38.8/1.0 42.6/1.0 50.0/1.0 60.5/1.0
14.6/1.25 18.0/1.25 20.1/1.25 25.1/1.25 28.5/1.25 34.6/1.25 39.8/1.25 45.0/1.25 50.5/1.25
Motor Power (kw) 110 132 160 185 220 250 300 350 400
Horse power (HP) 150 180 220 250 300 340 400 480 540
Dimension Length(mm) 2800 2800 2800 2800 2900 2900 4200 4200 4200
Width (mm) 1650 1650 1650 1650 1860 1860 2200 2200 2200
Height (mm) 1850 1850 1850 1850 2000 2000 2150 2150 2150
Noise dB(A) 75±2 75±2 75±2 78±2 78±2 78±2 80±2 82±2 83±2
Outlet diameter DN65 DN65 DN80 DN80 DN100 DN100 DN125 DN125 DN150
Weight (kg) 3030 3130 3210 3470 4500 4600 7000 7500 8100

Energy Saving

  • Traditional compressors (standard machine) usually use ON / OFF or proportional regulation system, which adjusts the opening amount of the air inlet of compressor. The adjustment method can also meet the actual requirements of the actual gas consumption, but the revolving speed of the compressor maintains at the rated speed in the entire adjustment process, the frictional work and cooling fluid agitation work will not be reduced, so although the gas consumption is lowered, the actual power consumption is not limited substantially. The variable frequency regulation can make the actual power consumption of the variable frequency compressor decline in the same proportion, and the energy is effectively used into the air compression.
  • In the market environment with fierce competition, it is an important matter as to whether the cost can be reduced. With the use of PM frequency conversion technology, you can save energy, thereby decreasing electricity expenditure sharply. It adjusts the compressor production capacity automatically according
